A compact home gym system's product listing usually leads with a single footprint number, but that number only covers the frame — not the clearance you need to actually use the leg press, pulleys, or press arms. The Marcy MWM-0623 is a real example worth breaking down both ways.

The Marcy MWM-0623: one frame, five stations

The Marcy MWM-0623 combines a reverse row station, upper and lower pulley system, rotating leg press seat, and chest press/fly arms into a single steel frame (MarcyPro). Its base footprint is 66.8 inches long by 43 inches wide, standing 79.5 inches tall, and the assembled unit weighs 280.5 lb. It uses a 120 lb selectorized weight stack, and because of how pulleys change leverage station to station, the actual resistance you feel ranges from about 30 to 360 lb depending on the exercise. It's rated for users up to 300 lb.

That footprint is the number most listings lead with, but it's the number for the frame sitting still — not for using it.

Why the footprint number isn't the whole space question

A leg press station needs room for your legs to extend fully. A pulley station needs a clear path for a cable attachment and your body's range of motion. None of that clearance shows up in a 66.8 x 43-inch footprint spec — it's specific to how you'll actually move on the machine, and it varies by your own height and the exercise. Before buying any all-in-one system, measure your available room against the footprint plus a real clearance margin on the sides where you'll be extending arms or legs, not just the frame's floor outline.

The Bowflex Xtreme 2 SE makes this gap between stored and working footprint explicit rather than leaving you to guess at it. Bowflex's own spec sheet lists two separate numbers: 63 x 49 inches for the machine sitting still, and 76 x 78 inches once the cable arms and bench extend for an actual set (Bowflex). That's a real workout area of roughly 112 x 150 inches once you add walking and rep clearance around the frame — closer to a small room's entire floor than the 63 x 49-inch number alone suggests.

Three more compact systems, compared by real spec

The Marcy MWM-0623 isn't the only all-in-one worth comparing. Two other systems come from manufacturers who publish comparably detailed specs, plus one plate-loaded combo unit worth knowing about even though it's built for a different situation.

Bowflex Xtreme 2 SE. Instead of a steel weight stack, it uses Bowflex's Power Rod resistance system — flexible rods that bend under load rather than plates that stack on a pin. The standard unit ships with 210 lb of resistance adjustable from 5 to 105 lb per side in 5 lb increments, and it's upgradeable to 310 lb or 410 lb with an accessory kit sold separately (Bowflex). It covers 70-plus exercises through a no-change cable pulley system, a lat tower, a 4-position lower pulley for leg work, and a leg extension attachment, and it's rated for users up to 300 lb. Stored footprint is 63 x 49 inches; the in-use footprint with arms extended runs 76 x 78 inches (Bowflex).

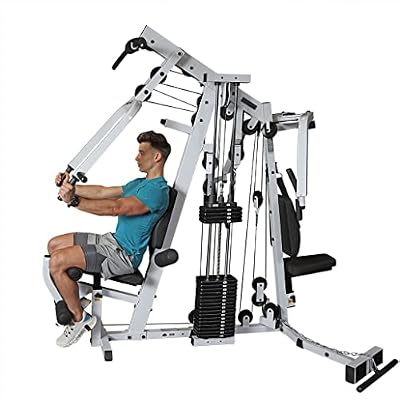

Body-Solid EXM2500. The largest of the three by footprint at 85 x 61 x 83 inches, and by far the heaviest once assembled at 578 lb (Body-Solid). It uses a 210 lb cast-iron weight stack across six stations — a multi-press position covering pec fly, bench press, incline press, standing military press and decline press, plus a lat pulldown/high pulley, ab crunch/mid pulley, leg extension/leg curl, and seated row/low pulley — and an optional leg press attachment that doubles resistance to an effective 420 lb through a 1:2 pulley ratio (Body-Solid). The 12-gauge steel frame and the heavier stack are the trade for the largest footprint of the three.

Force USA G3 (for contrast, not a compact pick). The G3 isn't a compact system at all — it's a power rack, functional trainer, Smith machine, chin-up station and landmine built into one 78 x 60.5-inch frame, and it uses your own Olympic plates instead of a built-in stack, with a 2:1 cable ratio and roughly 8.2 feet of cable travel across 21 height positions (Force USA, via Garage Gym Reviews). It's worth knowing about specifically because shoppers searching "compact home gym systems" sometimes land on combo-rack listings like this one — it belongs in the free-weight rack comparison covered by squat rack vs. Smith machine vs. power rack, not this footprint-first category, since its floor space and plate-loading requirement are a different trade-off entirely.

All four systems, side by side

The pattern across the three genuinely compact systems: a smaller footprint tends to pair with a lighter unit and a Power Rod or smaller steel stack, while the larger Body-Solid frame trades floor space for the heaviest cast-iron stack and the most stations. None of the three needs a wall stud or floor bolt — all are freestanding, self-contained frames, unlike the folding racks and benches covered elsewhere on this site.

All-in-one system vs. separate compact pieces

An all-in-one system trades flexibility for consolidation: one large, mostly fixed object instead of several smaller pieces you can fold or put away. A folding bench and a set of adjustable dumbbells cover a lot of the same strength-training ground and can shrink to a few inches of wall depth or a shelf when you're done, where a 280 lb multi-station frame stays assembled and in place. Which approach fits better depends on whether you have a dedicated spot you're willing to give up permanently, or need the space to do double duty.

Which system fits which room

• Tightest stored footprint, and you can live with arms folded in most of the time: the Bowflex Xtreme 2 SE at 63 x 49 inches stored is the smallest of the three when it's not actively being used, though its 76 x 78-inch working footprint still needs real clearance during a set.
• Smallest footprint that's also its working footprint, not just its stored one: the Marcy MWM-0623 at 66.8 x 43 inches doesn't publish a separate larger in-use number the way Bowflex does, making it the more predictable pick if you're measuring a genuinely tight corner.
• Want the most stations and the heaviest true stack, and have the floor and ceiling height to spare: the Body-Solid EXM2500 at 85 x 61 x 83 inches and 578 lb assembled is the largest and heaviest of the three, built to stay in one spot rather than get moved around.
• Already own or plan to buy a full set of Olympic plates and want a rack, Smith machine and cable trainer in one frame instead: that's the Force USA G3's use case, not this category's — expect a bigger footprint (78 x 60.5 in) and a bolt-down or freestanding rack-style setup rather than a self-contained pulley frame.

What to check before buying an all-in-one system

1. Base footprint, in inches, from the manufacturer spec sheet.
2. Clearance needed per station — not always published, so measure your room generously around the frame's footprint.
3. Weight stack and actual resistance range, since the stack number alone doesn't reflect leverage differences station to station.
4. Max user weight rating, separate from the stack's resistance range.

For the broader comparison between an all-in-one system and separate compact equipment, see small home gym equipment or the compact home gym hub.

As an Amazon Associate, this website earns from qualifying purchases.

For the Marcy MWM-0623, see the Marcy MWM-0623 Home Gym System listing for current availability. For the six-station Body-Solid EXM2500, see the Body-Solid EXM2500 Multi-Station Home Gym listing instead.

General home-gym planning information only, not professional construction, electrical, structural, medical, or training advice. Product specifications, compatibility, availability, prices and program terms change — verify them with the manufacturer or retailer before buying. No hands-on testing of any product named here is claimed.

Questions people also ask

What's included in a compact home gym system's listed dimensions?

Usually just the frame's footprint — how much floor space the machine itself occupies. The Marcy MWM-0623 lists 66.8 x 43 inches for that base footprint (MarcyPro), but stations like the leg press or pulley system need extra clearance around the frame to actually use them, which isn't part of that number. The Bowflex Xtreme 2 SE makes this especially visible: it's 63 x 49 inches stored, but its own spec sheet lists a separate 76 x 78-inch in-use footprint once the cable arms swing out (Bowflex).

How much weight can a compact all-in-one system actually provide?

Check the stack size and the exercise-specific resistance range, not just one number. The Marcy MWM-0623 uses a 120 lb selectorized weight stack, but because of pulley leverage, actual resistance at different stations ranges from about 30 to 360 lb depending on the exercise (MarcyPro). The Bowflex Xtreme 2 SE uses Power Rod resistance instead of a steel stack — 210 lb standard, adjustable from 5 to 105 lb per side in 5 lb steps, and upgradeable to 310 lb or 410 lb with an accessory kit (Bowflex). Body-Solid's EXM2500 ships with a 210 lb cast-iron stack that doubles to an effective 420 lb on the leg press attachment because of its 1:2 pulley ratio (Body-Solid).

Is an all-in-one system more space-efficient than separate equipment?

It consolidates several stations — reverse row, upper and lower pulleys, leg press, chest press — into one frame, which can beat buying a rack, a cable machine, and a leg press separately. But the frame itself is a fixed, large object once assembled; compare its full footprint plus clearance against buying a folding bench and adjustable dumbbells instead, which store away when not in use. See the [small home gym equipment](/compact-home-gym/small-home-gym-equipment/) guide for that comparison.

Are all compact home gym systems the same size?

No — the base footprint alone spans a wide range. The Marcy MWM-0623 is the smallest of the systems sourced here at 66.8 x 43 inches, the Bowflex Xtreme 2 SE is close behind at 63 x 49 inches stored, and the Body-Solid EXM2500 is the largest at 85 x 61 inches (MarcyPro; Bowflex; Body-Solid). A plate-loaded combo unit like the Force USA G3 is bigger still — 78 inches wide by 60.5 inches deep — because it adds a full power rack and Smith machine around the cable system rather than just a pulley frame (Force USA via Garage Gym Reviews). Compare the exact model's number, not the category name.
